You've built a beautiful home!
Enhance its value with the perfect finishing touch.



 A custom wooden garage door from our Carriage
House Door woodcustomgaragedoordesoigncollection combines old-world design with state-of-the-art technology

to replicate beautiful, period-style doors that compliment both new construction

and tasteful retrofit.


Each garage door from our custom wood collection offers the timeless beauty,

authenticity, and quality of a carriage door constructed a century ago, yet functions using the latest modern technology.

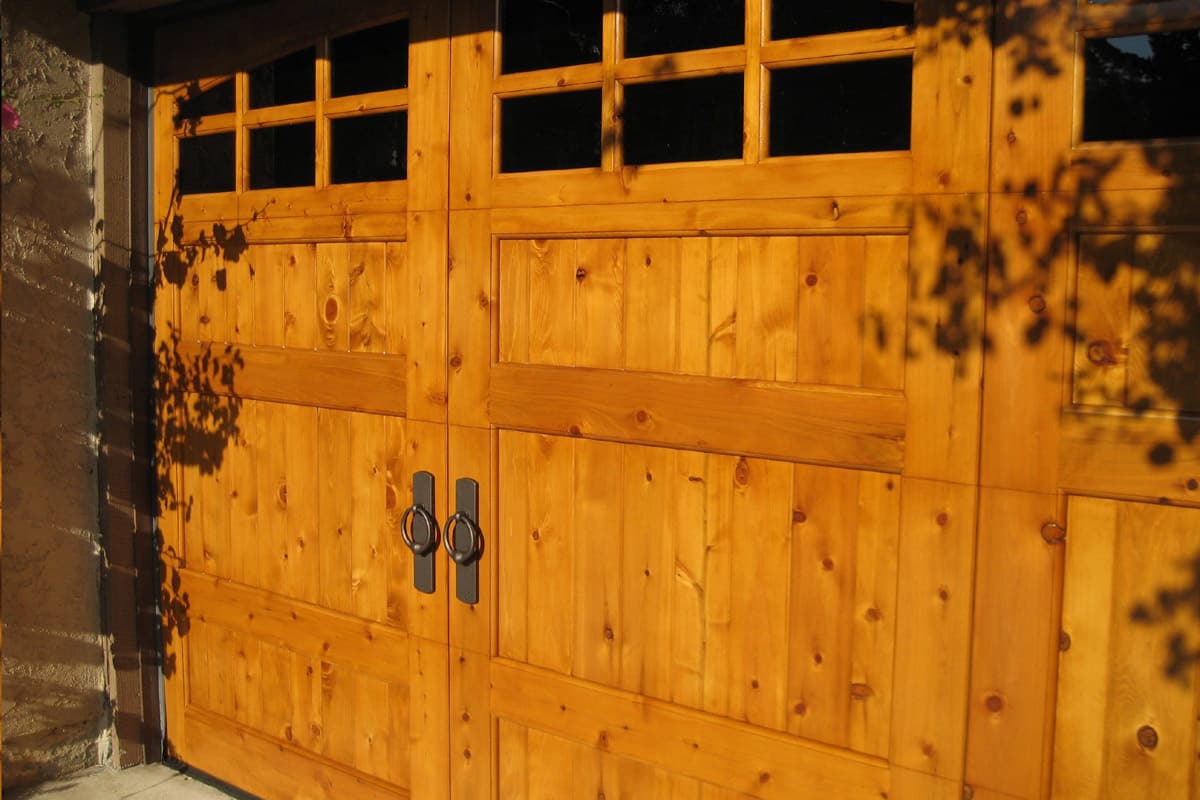

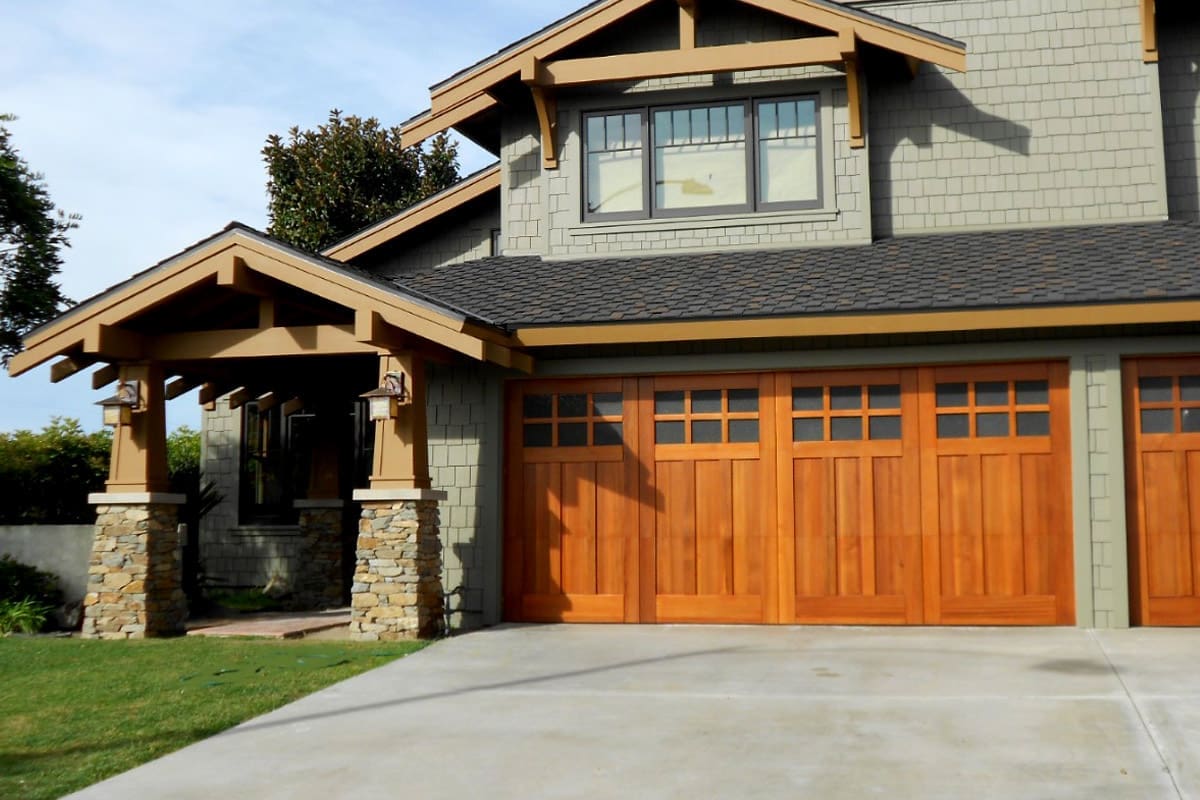

Click here for Photo Galler

We Can Design A  Beautiful Custom Garage Door that will provide a atractive finishing touch to your home.

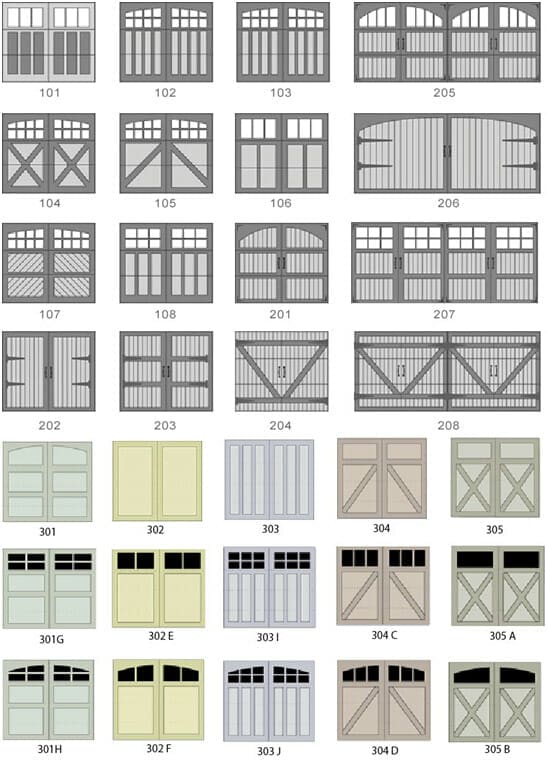

Here
are only some of the garage door design and window options.




Specifications:

Frame: 1-3/8 inch kiln-dried hemlock/fir


Facing:
 Your choice of the following:

  • 3/8 or 5/8 inch medium density overlay plywood (for paint grade doors only).
  • Vertical grain western red cedar, incense cedar, fir, or any other available materials as specified.

Wire-brush option is available on all doors to produce a weathered effect.


Trim/Overlay:
 Your choice of the following:

  • Stain Grade: 5/8 inch clear western red cedar (standard),
    bonded to the facing with exterior adhesive and galvanized pin nails.
    Other options include redwood, fir, or other specified select woods.
  • The concealed side of the trim is back-cut to prevent twisting and warping.

Core: 1-3/8 inch EPS, Polystyrene insulation


Windows:
 1/8 inch DSB (standard) stopped and sealed in place. Many other types of windows are available as well.


Arched Top:
 Available in a standard or custom radius. Please provide template with custom arch.


Designs:
 Choose from our designs or provide a detailed drawing of your own door.


Section Height:
 The maximum section height is 32 inches.

The following guidelines show the number of sections for door heights of up to fourteen feet:

  • Up to 8'0”: 3 sections
  • From 8'0" to 10’: 4 sections
  • From 10' to 12’: 5 sections
